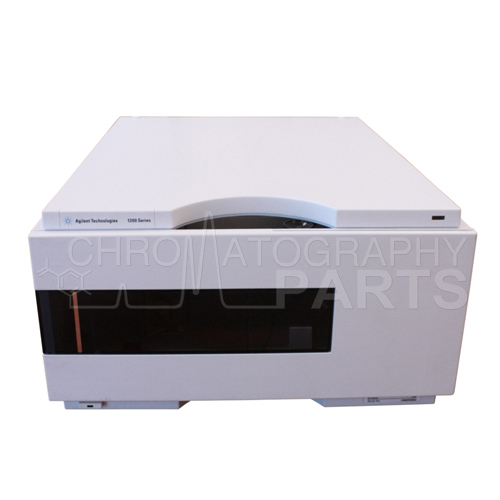

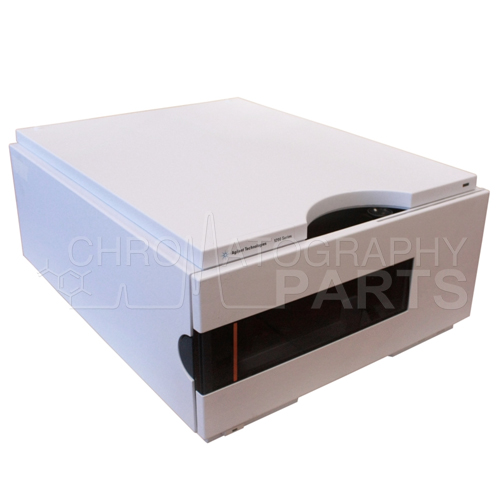

Agilent 1200 Series G1362 Refractive Index Detector (RID)
The Agilent 1200 Series Refractive Index Detector (RID) is the ideal detector for fast and reliable LC results when routinely analyzing non-UV absorbing substances, such as carbohydrates, lipids and polymers. The 1200 Series RID is also the detector of choice for gel permeation chromatography (GPC) or size exclusion chromatography (SEC).
Specifications:
- Detection type: Deflection method
- Short-term noise: ±2.5 × 10-9 RIU
- Drift: 200 x 10-9 RIU/h
- Refractive index range: 1.00–1.75, calibrated
- Flow cell: 8 µL, 5 bar pressure maximum
- Temperature control: Ambient +5 °C to 55 °C
- pH range: 2.3–9.5
- Time programmable: Polarity, peak width
- Zero adjustment: Automatic zero
- Valves: Automatic purge and automatic solvent recycle
- Analog output: Recorder/integrator: 100 mV or 1 V, with offset adjustment, RIU range selectable
| Weight | 27 lbs |
|---|---|
| Dimensions | 22 × 22 × 14 in |
| Condition | |
| OEM Part Number | |
| Manufacturer Type |
